Project: Formant 1978
![]() |
|
![]() |
![]() |
Mein
Formant mit 3* VCO, 2*VCF, 2* ADSR, 1* VCA
|
|
![]() |
![]() |
VCO | VCF |
![]() |
![]() |
ADSR | VCA |
![]() |
|
Bauanleitung Formant | |
![]() |
|
Project: Sequencer Control / Formant Modul 1979Mein erster Microprocessor Sysem 6802 CPU mit Hex Eingabe steuert das Rack mit Roland M100 |
|
![]() |
![]() ![]() |
![]() |
|
Schaltbild ohne AD-Wandler, für CV & GATE (1V/Oktave) | |
![]() |
|
Project:

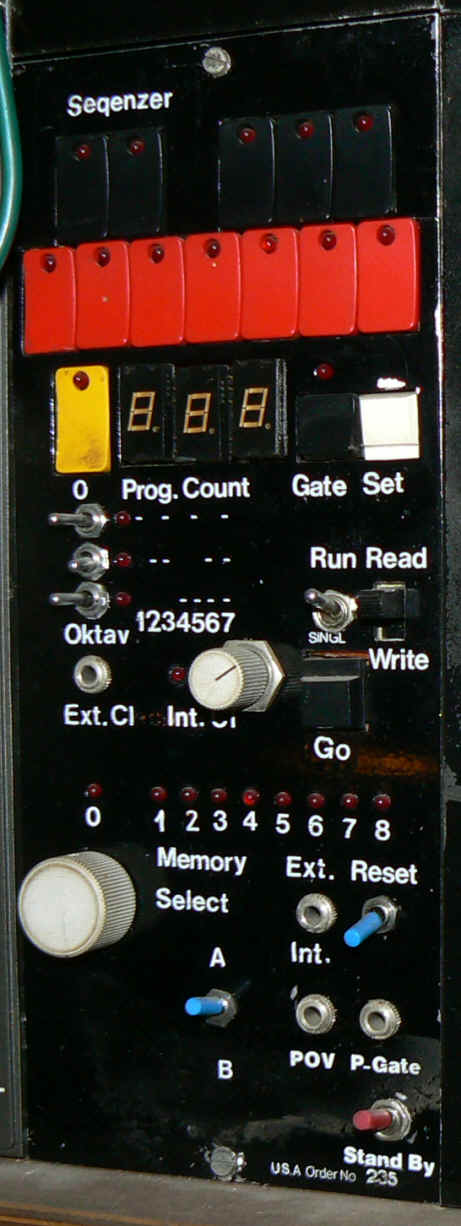

Microprocessor gesteuerte Sequencer Module (Eigenbau) 1980-82 - Junior 6502 - Roland Modul System M110, M140 - Analog Sequencer - Takt Synchronizer |
|
![]() |
|
Mein
Erster Computer 1980 Junior 8 Bit 6502 CPU
------------------------ Der Junior-Computer war ein Einplatinen-Computer-Bausatz auf Basis des 6502-Prozessors. Entwickelt wurde der Rechner von Loys Nachtmann für die Zeitschrift Elektor, die den Bausatz in einer mehrteiligen Zeitschriftenserie ab Mai 1980 vorstellte. Obwohl der Elektor-Junior-Computer nicht der erste Einplatinen-Computer auf Basis des 6502-Prozessors war (in den USA gab es damals schon den KIM-1), war es besonders in Europa ein sehr erfolgreiches Modell, das mehrere tausend Mal nachgebaut wurde. Die Entwicklung des Junior-Computers war inspiriert vom KIM-1. |
|
![]() |
|
![]() |
|
Project: MIDI controlled Analog Synthesizer RS09 |
|
![]() |
|
Eigenkonstruktion

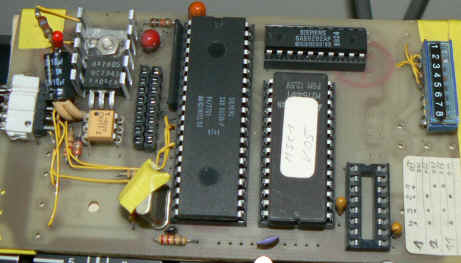

des MIDI to Analog Interface Prototype MCV1
|
|
![]() |
|
Atari
mit Eigenkonstruktion des MIDI to Analog Interface MCV1
- SAB 8051
Single Chip CPU |
![]() |
Jürk Habel und Dieter Doepfer, MIDI-Interface für Oldtimer, Funkschau Hefte 9/89, 10/89 und 11/89, Franzis-Verlag, München | Bedienungs- und Bauanleitung MIDI-CV-Interface MCV1 |
